My first jet was based on an article that was released in FMT 11/98 where Dirk Juras built an F-20. I changed several things, like the airfoil and that I built a ribbed wing instead of a foam one, but the general concept remained the same.

Specifications

Wingspan: 1m
Length: 1.5m
EDF: WeMoTec MidiFan Pro, Hacker B50 16L
Battery: 6s3p Konion
Weight: 2.3Kg

Discussion in German on RC-Network
Discussion in English on RC-Groups

Download dxf plan

Build

Fuselage

Parts with artistic cutouts:

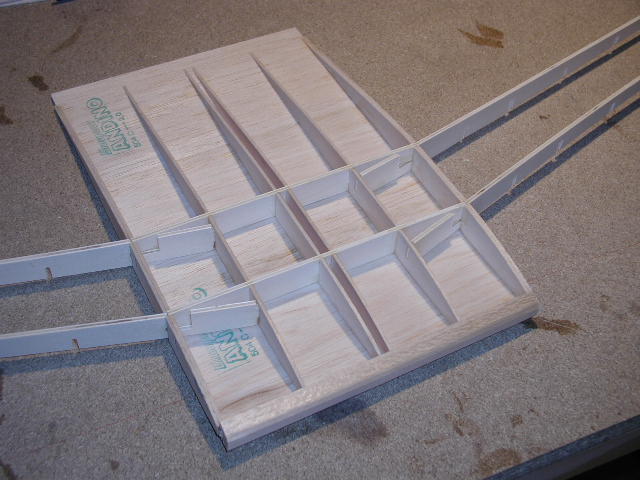

Wing

Everything coming together:

Flight

The first flight was rather short, as the ducts couldn’t withstand the vacuum from the EDF and collapsed mid flight. After reinforcement the F-20 performed well.
