The Yak-15 was Russias first jet fighter. I tried to recreate it in 1:5 scale. I built the wings with a foam core, but I also created plans for ribbed wings.

Specifications

Wingspan: 1.8m
Weight: 5kg EDF: Schübeler DS-94-DIA 3-ph Battery: 10s 4200 LiPo

Discussion in German on RC-Network
Discussion in English on RC-Groups

Download dxf plan
Download dxf wing plan

Build

Foam cores cut with a hot wire:

All parts prepared:

Vertical stab put together without glue:

Fuselage without sheeting is built up quickly:

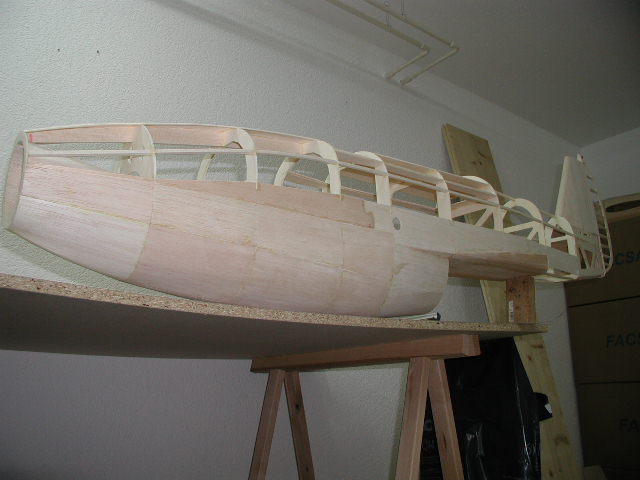

What takes time is the sheeting…

I made the horizontal stab removable, only to never remove it later…

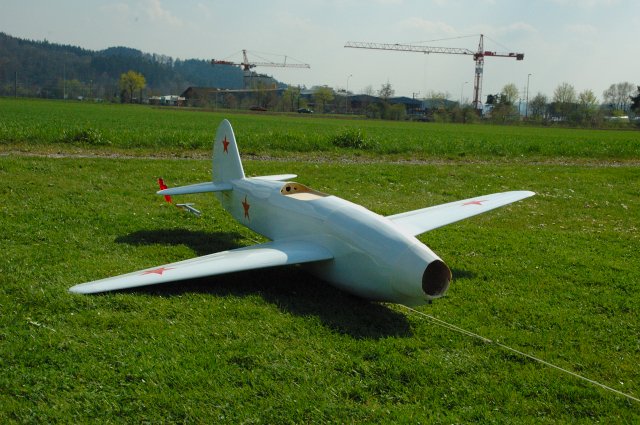

Almost done:

Some covering:

First flight was still without canopy, bungee launched:

Later I installed gears which also worked well. She really wanted to take off early, so had to keep her down until up to speed to not directly stall her. Once in the air she was a nice flyer.
